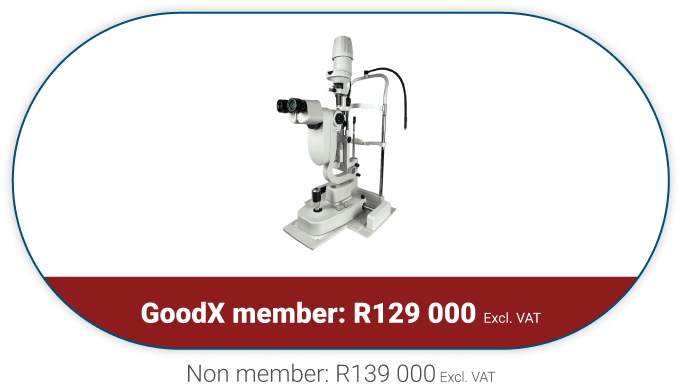

Digital Slit Lamp
Product Model: SL-400
Top Features include
- Warm LED Light Source
- PMW Brightness Control
- Continuous Illumination Control
- Filtering Infrared and Ultraviolet Light
- Includes Computer
PRODUCT FEATURES
Image Capture Software Designed
for Slit Lamp Camera Users
Special designed beam
splitter
Specifications
| Microscope Type | Galilean System |
|---|---|
| Magnification Changer | Parallelogram/Drum |
| Eyepiece Magnification | 12.5x |
| Slit Angle | 0°~180° Continuously Adjustable |
| Filter | Heat-Absorption, Grey, Red-Free (Green), Cobalt Blue |
| Light Control | PWM: Pulse Width Modulation |
| Light Source | Warm (LED) |
| Magnification | 6.3x, 10x, 16x, 25x, 40x |
| Diopter | -5D~+5D |
| Visual Field Diameter | 6.3x = 33mm, 10x = 22.5mm, 16x = 14mm, 25x = 8.8mm, 40x = 5.5mm |
| Illumination Type | Haag-Sreit Type |
| Illumination Tilting | 5°, 10°, 15°, 20° |
| Slit Width | 0mm~14mm continuously adjustable |
| Slit Length | 1mm~14mm continuously adjustable |
| Slit Aperture Size | φ1mm, φ2mm, φ3mm, φ5mm, φ10mm, φ14mm |
| IR/AR Filter | None |
| Yellow Filter | Optional |
| Handle Operation | Normal design |
| Image Acquisition | 24MPx SLR |
| Aperture Position | None |
| Eyepiece Luminous Rate | 60% |
| Camera Luminous Rate | 40% |
| Flash System | None |
| Background Illumination | Co-Axial |
Note: Specifications and design are subject to change without notice.
