Optical Coherence Tomography (OCT)

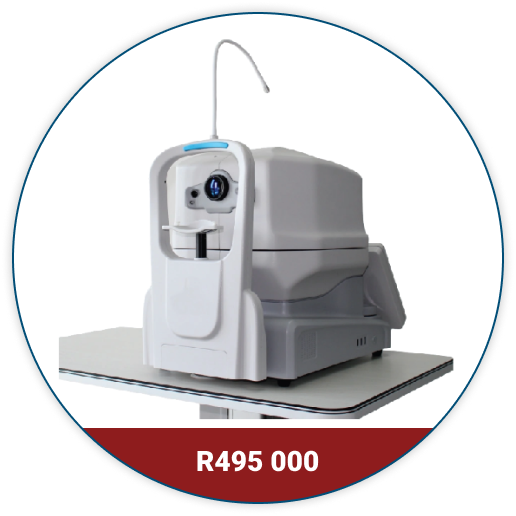

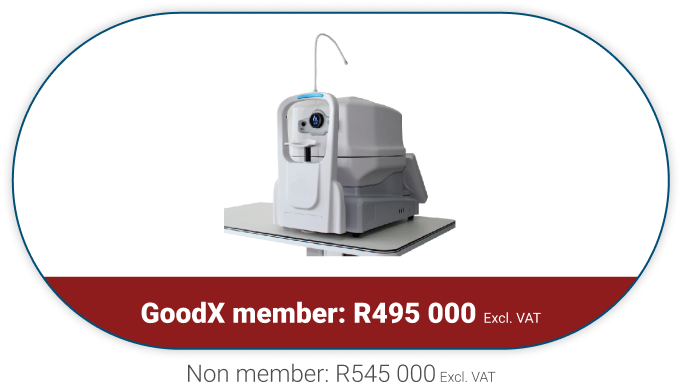

Product Model: Retiview 500
Top Features include
- Auto pupil search
- Dual camera system
- Small pupil mode and soft lighting
The TOP of the class with a 24MPx sensor
SYSEYE X1 – fully featured non-mydriatic and mydriatic color camera SYSEYE X2 – adds fluorescein angiography (FFA) and autofluorescence (FAF)
Specifications
| Methodology | Spectral domain OCT |
|---|---|
| Field of view | 50° |
| Working distance | 35mm |
| Minimum pupil size | ≥ 3.3mm |
| Focus modes | Auto / manual |
| Exposure modes | Auto / manual |
| Operation | Auto/Manual |
| Photography | SLR camera |
| Image resolution | 24 megapixels |
| Diopter compensation | +25D |
| Fixation | External fixation / internal fixation |
| Autofocus assist light | Infrared LED |
| DICOM 3.0 | Yes |
| Customisation AI port | Yes |
| Dimensions | 497mm (L) × 395mm (W) × 490mm (H) |
| Weight | 34kg |
| Power supply | 100 – 240 V, 50/60 Hz |
Note: Specifications and design are subject to change without notice.
