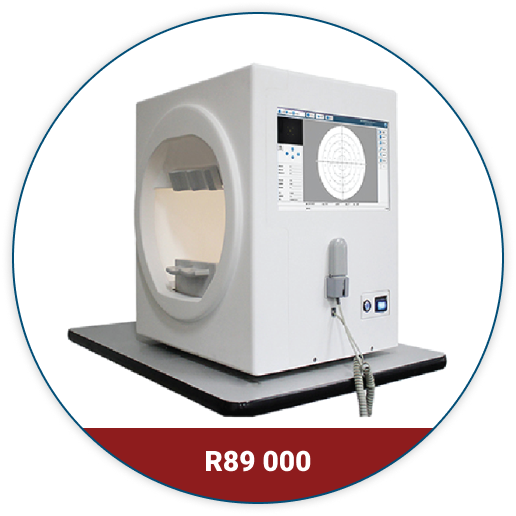

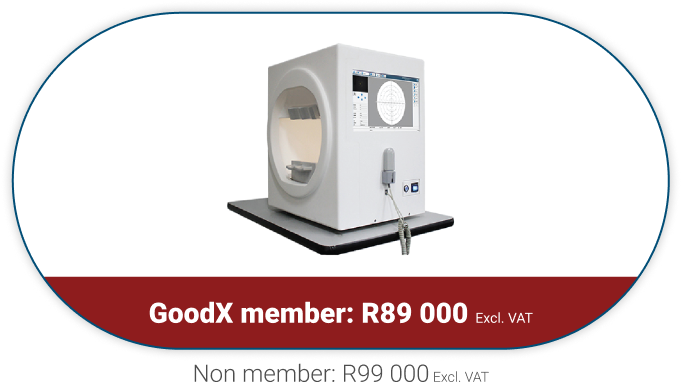

Visual Field Analyser
Product Model: BIO – 1000 Automatic
Top Features include
- Comprehensive real-time monitoring
- Blind spot monitoring
- Automatic measurement of pupil diameter
- Reduces the impact of pupil effect on visual field detection
- Automated perimeter
Specifications
| Inspection range | 90° |
|---|---|
| Inspection distance | 30cm |
| Background light brightness | White 31.5asb |
| Visual target brightness | 1asb— – 10,000asb |
| Visual target size | Goldmann III |
| Visual target interval time | 200ms (standard or adjustable based on patient response) |
| Threshold test model | Centre 5° – 16, Centre 10° – 68, 24-2, 30-2, 30°–60° nasal step |
| Upper Threshold test model | 30° – 40, 30° – 76, P-60, 60° – 81, 60° – 120, 190° – 135 nasal side |
| Special detection strategy | Esterman monocular, esterman binocular, user-customized tests, 150P driver monocular (fast detection), 150P driver monocular (standard detection), Upper 36 detection blind spot detection, 150° horizontal straightness detection |
| Pupil size test | Automatic |
| Fixation monitoring | Blind spot monitoring, eye position deviation alarm, eye deviation curve |
| Environment light detection | Automatic |
| Analysis software | Reliability analysis, single vision report, triple vision report, GPA half-vision analysis, GPA glaucoma progression analysis, VFI (Visual Function Index) analysis |
| Operation system | Windows 7 or later |
| Dimensions | 412mm (L) x 497mm (W) x 513mm (H) |
| Weight | 17kg |
| Power supply | 100–240V, 50/60Hz |
Note: Specifications and design are subject to change without notice.
